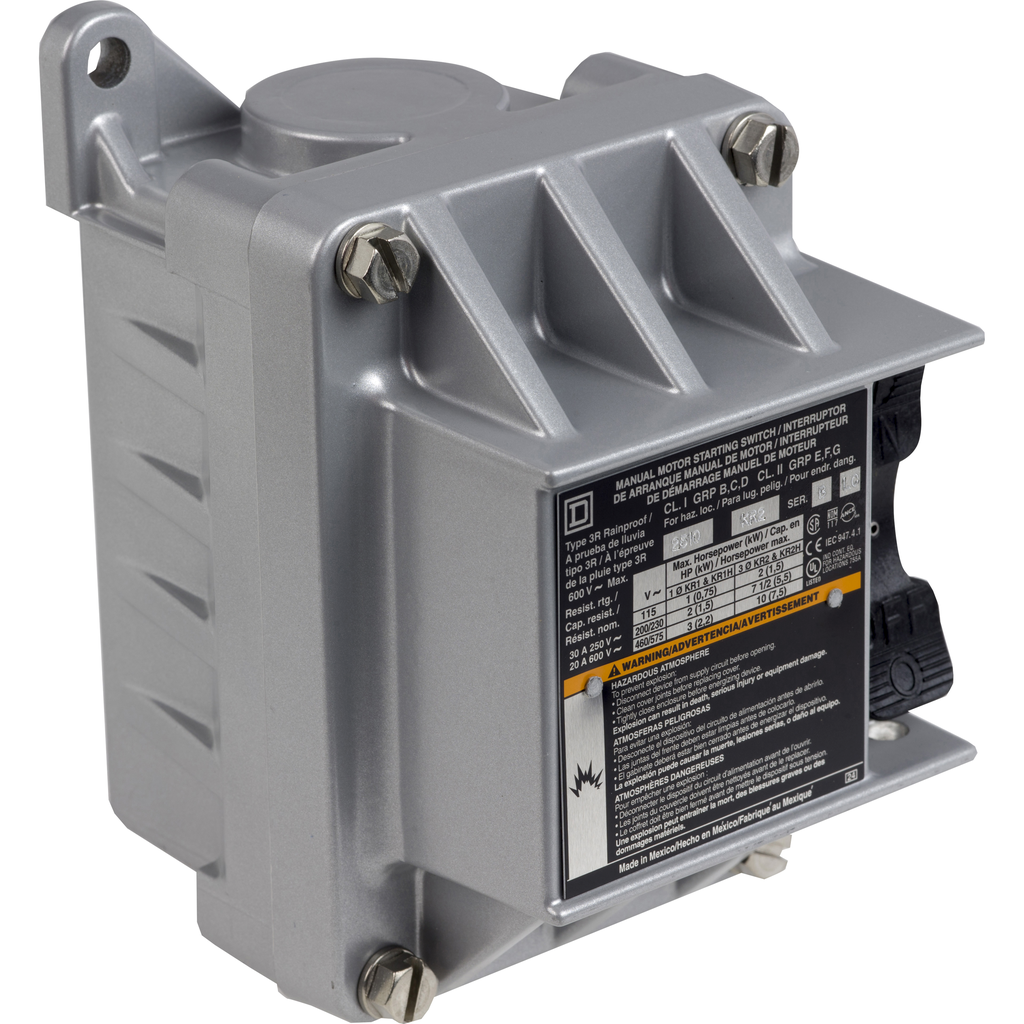

2510K manual motor switches are designed for manual On Off control for small motors. This two pole switch is rated for 2 HP at 115VAC, 2 HP at 230VAC, 3 HP at 460VAC, and 3 HP at 600VAC single phase. It is also rated for 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC motors. Overload protection for the motor must be supplied separately. 2510K switches can be ordered in a variety of enclosure types. This device is in a surface mount NEMA 7&9 hazardous location enclosure. A 3/4 inch conduit opening is on the top and bottom of the enclosure. Enclosure as a provision to allow padlocking of this device. 2510K manual switches are UL listed and CSA certified. This switch has no pilot light indicator. A cast aluminum NEMA 7 and 9 hazardous location, Class 1, Groups B, C & D and Class II, Groups E, F, & G enclosure is used to protect this starter. This enclosure has one conduit entry on the bottom and one on the top. The 0.75 inch conduit entries are tapped with number 14 pipe threads. Enclosure is 6.36 inches tall, 3.95 inches wide and 4.35 inches deep. This device is UL Listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | K |
---|---|
Product Or Component Type | Single Unit Manual Switch |
Warranty | 18 months |
Motor Starter Type | non reversing |
Local Signalling | no indicator |
Height | 6.36 in |
Poles Description | 2P |
Electrical Connection | screw clamp terminals |
Cable Entry | 0.75 NPT (top and bottom) |
Line Rated Current | 30 A |
Awg Gauge | AWG 14...AWG 10 copper |
Width | 3.95 in |
Depth | 4.35 in |
Maximum Horse Power Rating |
|
Phase | 1 phase |
[Ue] Rated Operational Voltage |
|
Control Type | toggle |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Pvc Free | Yes |
Eu Rohs Directive | Not compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Product Certifications |
|
Nema Degree Of Protection | NEMA 3R/7/9 Cast Aluminium standard size |
