Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, red 440/600 VAC indicator, NEMA 1 enclosure

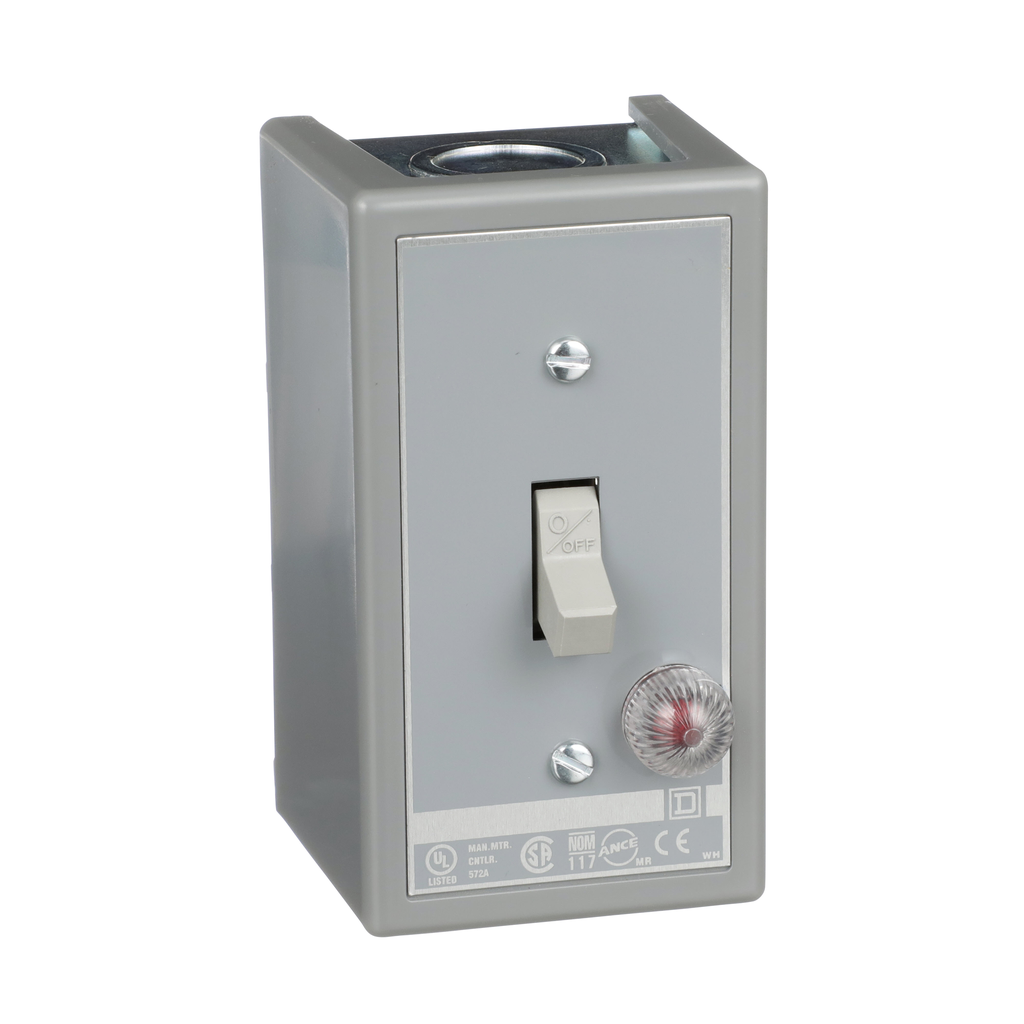

2510K manual motor switches are designed for manual On Off control for small motors. This three pole switch is rated for 2 HP at 115VAC, 7.5 HP at 230VAC, 10 HP at 460VAC, and 10 HP at 600VAC three phase. It is also rated for 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC motors. Overload protection for the motor must be supplied separately. 2510K switches can be ordered in a variety of enclosure types. This device is in a surface mount NEMA 1 enclosure. This switch comes as standard with a 440 to 600 volt red pilot light. A handle guard is supplied as standard. This handle guard allows the padlocking of this device. 2510K manual switches are UL listed and CSA certified. This switch has a 440 to 600 Vac red pilot light indicator. This NEMA 1 general purpose enclosure is a surface mounting enclosure. The enclosure has has a 0.5 and 0.75 knockout on the top and bottom. The enclosure is 4.25 inches tall, 2.44 inches wide and 2.75 inches deep. This device is UL Listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | K |
|---|---|
| Product Or Component Type | Single Unit Manual Switch |
| Warranty | 18 months |
| Motor Starter Type | non reversing |
| Local Signalling | red indicator, 440...600 V |
| Height | 4.25 in |
| Poles Description | 3P |
| Electrical Connection | screw clamp terminals |
| Cable Entry | 0.5" and 0.75" knock-outs (top and bottom) |
| Line Rated Current | 30 A |
| Awg Gauge | AWG 14...AWG 10 copper |
| Width | 2.44 in |
| Depth | 2.75 in |
| Maximum Horse Power Rating |
|
| Phase | 3 phase |
| [Ue] Rated Operational Voltage |
|
| Control Type | toggle |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Pvc Free | Yes |
| Eu Rohs Directive | Not compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Product Certifications |
|
| Nema Degree Of Protection | NEMA 1 Plastic standard size |
