Manual Starter, fractional horsepower, 16A, 1 pole, 1HP at 277VAC, no indicator, NEMA 7&9, 2 conduit opening

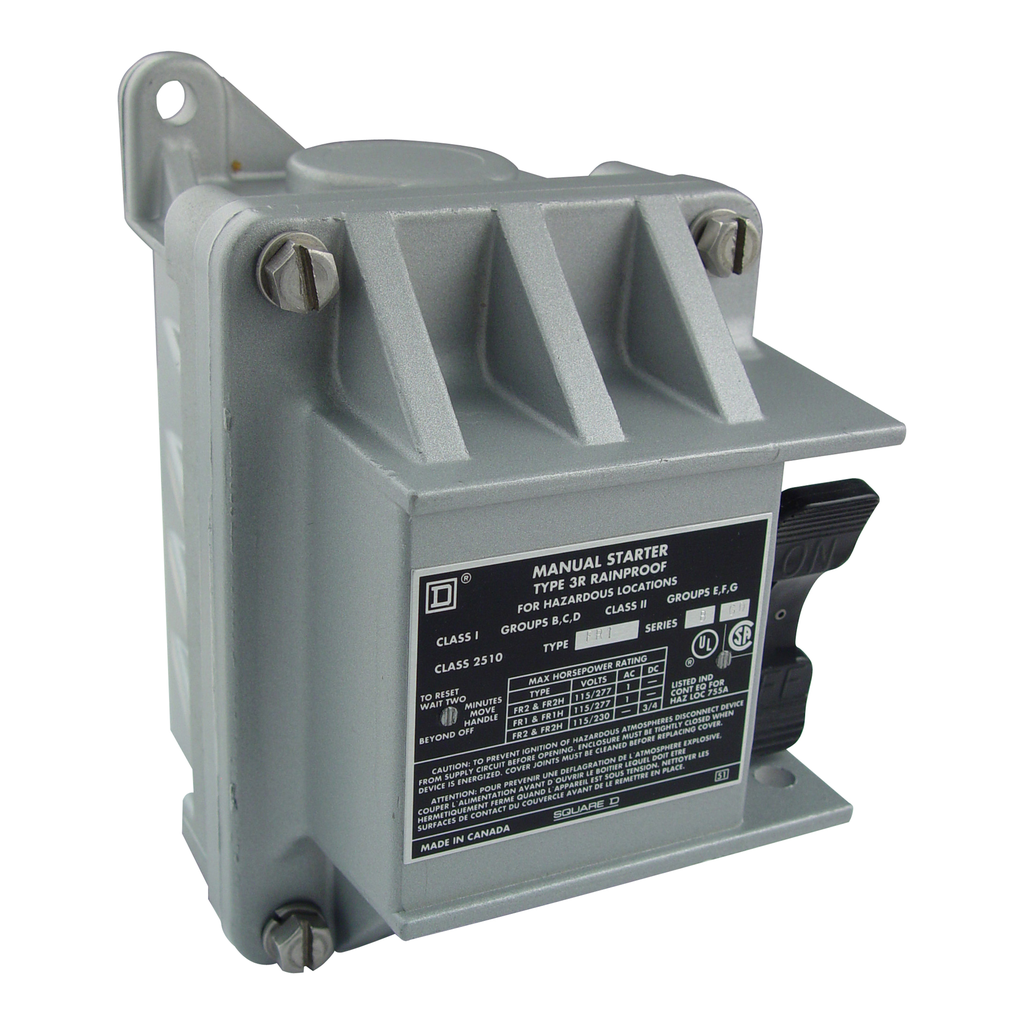

2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. These manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This one pole non-reversing manual starter has a single phase motor rating of up to 1 HP at 115, 230 and 277 VAC. Melting alloy thermal units are used with this manual starter to sense over current conditions. These thermal units are ordered separately to match motor data. A cast aluminum NEMA 7 and 9 hazardous location, Class 1, Groups B, C & D and Class II, Groups E, F, & G enclosure is used to protect this starter. This enclosure has one conduit entry on the bottom and one on the top. The 0.75 inch conduit entries are tapped with number 14 pipe threads. Enclosure is 6.36 inches tall, 3.95 inches wide and 4.35 inches deep. A toggle handle is used to turn the manual starter on and off. The toggle handle can be padlocked in the off position. 2510F fractional horsepower manual starters are UL listed and CSA certified. Manual starter is UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Thermal Overload Type | melting alloy |
|---|---|
| Range Of Product | F |
| Product Or Component Type | Single Unit Manual Starter |
| Warranty | 18 months |
| Motor Starter Type | non reversing |
| Reset | manual |
| Height | 6.36 in |
| Poles Description | 1P |
| Electrical Connection | screw clamp terminals |
| Cable Entry | 0.75 NPT (top and bottom) |
| Line Rated Current | 16 A |
| Local Signalling | no indicator |
| Awg Gauge | AWG 14...AWG 12 copper |
| Width | 3.95 in |
| Depth | 4.35 in |
| Maximum Horse Power Rating |
|
| Phase | 1 phase |
| [Ue] Rated Operational Voltage | 277 V AC |
| Control Type | toggle switch (with lock-off) |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Pvc Free | Yes |
| Eu Rohs Directive | Not compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Product Certifications |
|
| Nema Degree Of Protection | NEMA 3R/7/9 Cast Aluminium standard size |
