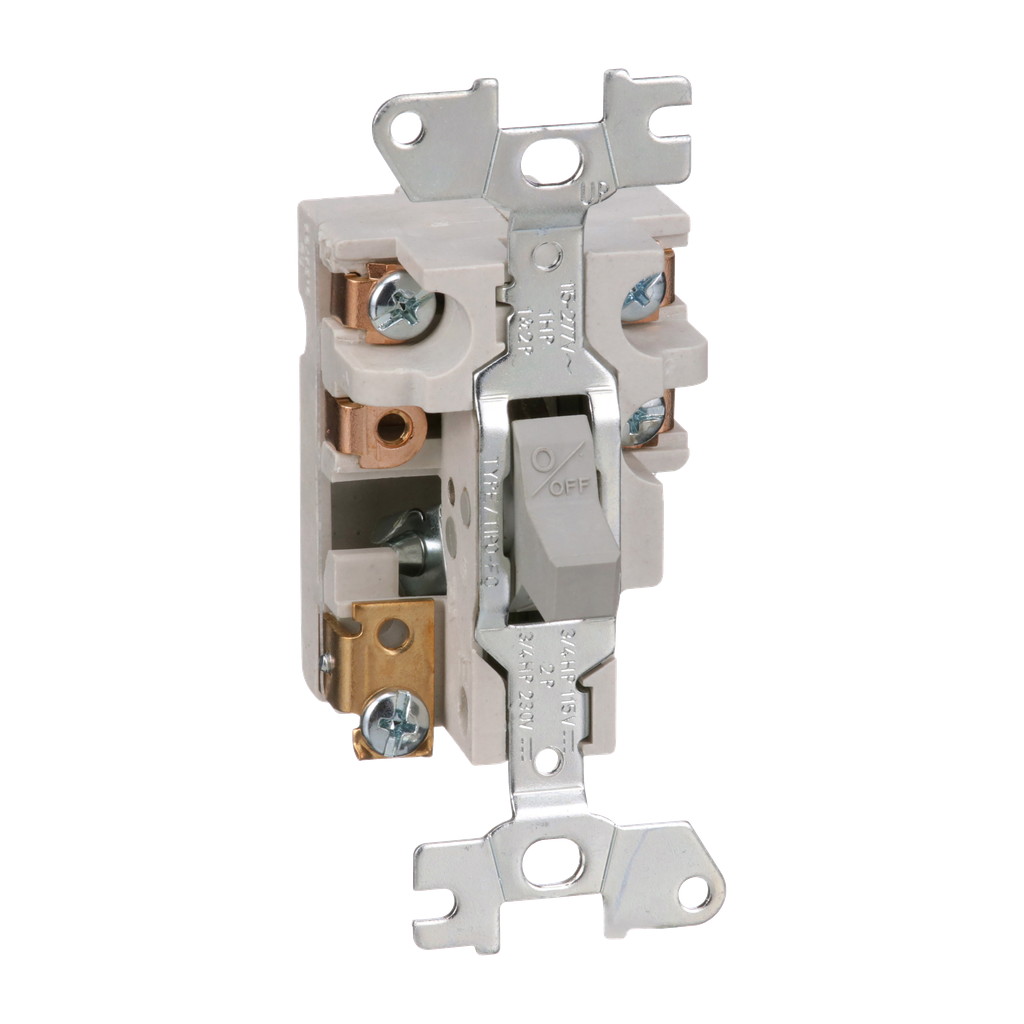

Square D 2510F fractional motor manual starter provide overload protection and manual On Off control for small single phase AC motors. Open style starter fits industry standard single-gang switch boxes for direct mounting in a wall or machine using any standard cover plate with a standard single cutout. Overload heater element is ordered separately to match motor data. Pilot light option is available. A variety of enclosures are available. Units are UL Recognized and CSA Certified for global applications. This 2 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP at 115 VAC, 2 HP at 230 VAC, 1 HP at 277 VAC and 0.75 HP at 115 and 230 VDC ratings. This NEMA 1 general purpose enclosure is a surface mounting enclosure. This manual starter is 4.13 inches tall, 1.69 inches wide and 2.22 inches deep. It weighs 0.33 lb. This device is without a pilot light indicator. Manual starter is UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueThermal Overload Type | melting alloy |
---|---|
Range Of Product | F |
Product Or Component Type | Single Unit Manual Starter |
Warranty | 18 months |
Motor Starter Type | non reversing |
Reset | manual |
Height | 4.13 in |
Poles Description | 2P |
Electrical Connection | screw clamp terminals |
Cable Entry | without |
Line Rated Current | 16 A |
Local Signalling | no indicator |
Awg Gauge | AWG 14...AWG 12 copper |
Width | 1.69 in |
Depth | 2.22 in |
Maximum Horse Power Rating |
|
Phase | 1 phase |
Net Weight | 0.15 kg |
[Ue] Rated Operational Voltage |
|
Control Type | toggle switch |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Pvc Free | Yes |
Eu Rohs Directive | Not compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Product Certifications |
|
Nema Degree Of Protection | not rated (open device) |
