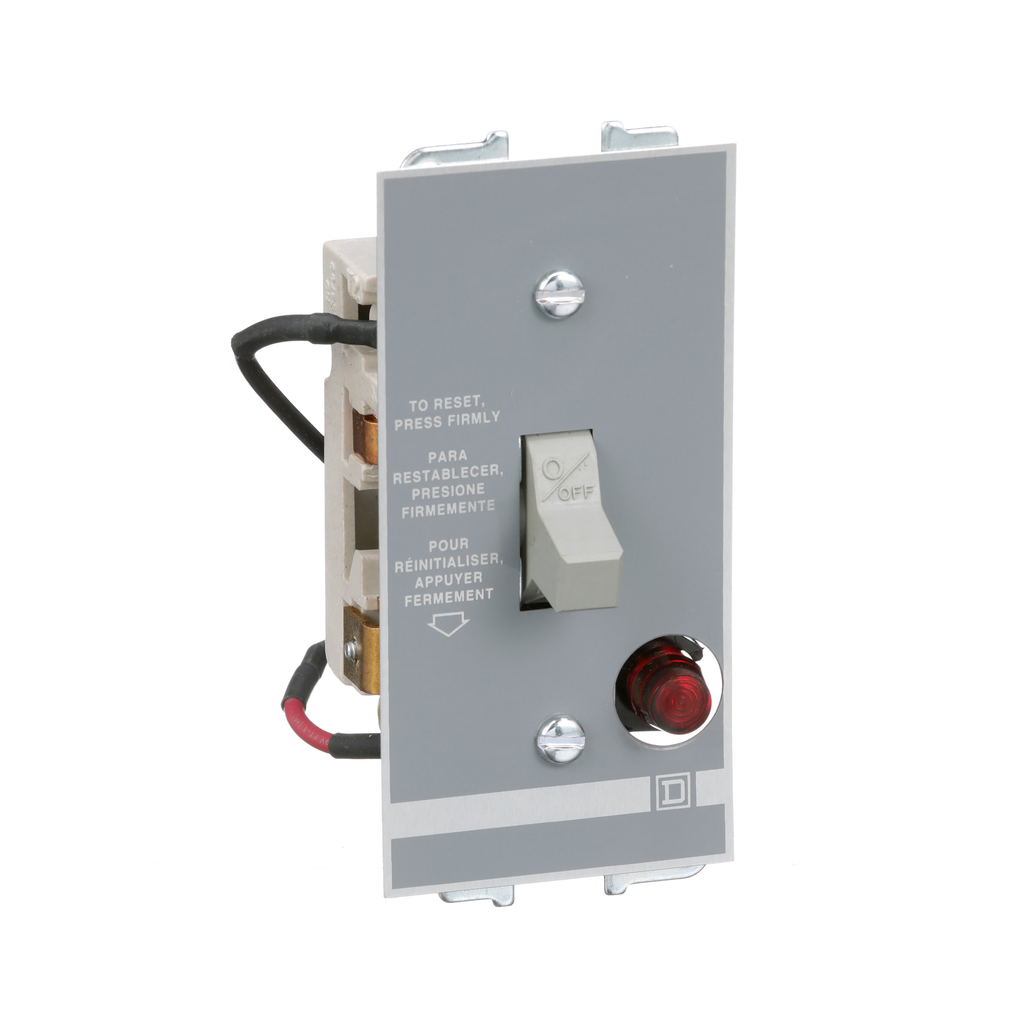

Square D 2510FO1P manual motor starter, 1 pole, up to 1HP, 16 amperes maximum at 277 VAC, toggle operator, melting alloy overload relay, with red pilot light, open style enclosure. Square D 2510 Type F fractional motor manual starters provide overload protection and manual On-Off control for small single phase AC motors. Open style starter fits industry standard single-gang switch boxes for direct mounting in a wall or machine using any standard cover plate with a standard single cutout. Overload heater element is ordered separately to match motor data. With red pilot light. Units are UL Recognized, CSA Certified and CE Marked for global applications. Fractional Motor Starters. Designed for fractional single phase motors up to 1 HP. Provides easy manual “On-Off” control of small motors. Provide melting alloy overload protection for motors. Intended for industrial and commercial applications. Enclosed or open versions to suit most application environments. Can be easily installed. UL, CSA and CE approvals.
Brand: Schneider Electric
Add to Quote CatalogueThermal Overload Type | melting alloy |
---|---|
Range Of Product | F |
Product Or Component Type | Single Unit Manual Starter |
Warranty | 18 months |
Reset | manual |
Height | 4.13 in |
Phase | 1 phase |
Control Type | toggle switch |
Motor Starter Type | non reversing |
Poles Description | 1P |
Electrical Connection | screw clamp terminals |
Cable Entry | without |
Line Rated Current | 16 A |
Local Signalling | red indicator |
Awg Gauge | AWG 14...AWG 12 copper |
Width | 1.69 in |
Depth | 2.22 in |
Maximum Horse Power Rating |
|
[Ue] Rated Operational Voltage | 277 V AC |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Eu Rohs Directive | Not compliant |
Product Certifications |
|
Nema Degree Of Protection | not rated (open device) |
