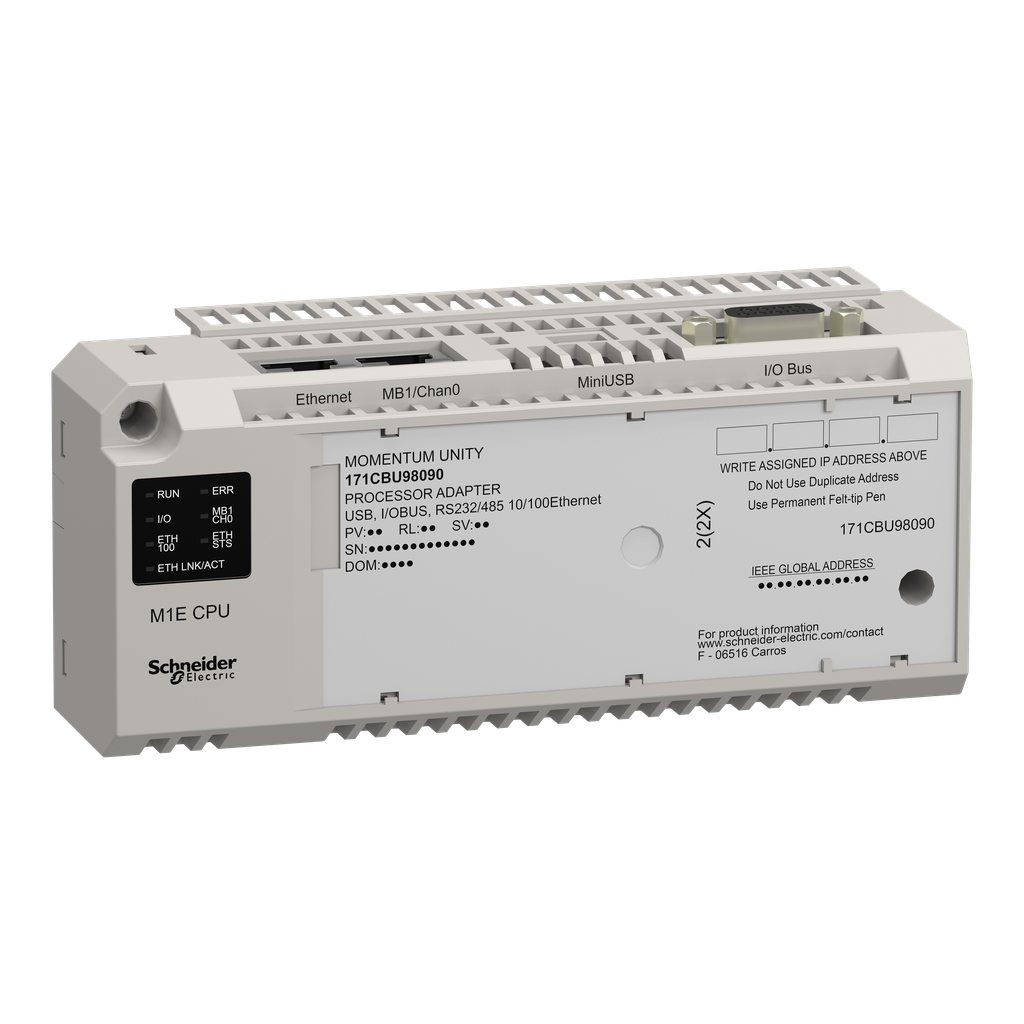

This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This Unity M1E processor is equipped with Ethernet and USB integrated connection ports. The Spear 320s processor's communication services are Modbus messaging 125 words, 200 I/O message per second. The processor with Unity Pro software has web services like CPU status, Ethernet statistics, bandwidth monitoring, home pages and properties. It is an IP20 rated product. Its dimensions are 144mm (width) x 53.47mm (depth) x 60.6mm (height) and weighs 0.163kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM, C-Tick. It meets UL 508, CSA C22.2 No 142 and EN/IEC 61131-2 standards. This product is compatible with Modicon STB I/O. It supports 35mm symmetrical DIN rail mount. Momentum is a flexible, modular family of fundamental components that easily snap together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
Brand: Schneider Electric
Add to Quote CatalogueIntegrated Connection Type |
|
---|---|
Range Of Product | Modicon Momentum automation platform |
Product Or Component Type | processor |
Product Compatibility | Modicon STB I/O |
I/O Limit Processor Capacity | 2048 inputs/2048 outputs |
Height | 60.6 mm |
Current Consumption | 500 mA 5 V DC |
Topology |
|
Communication Port Protocol |
|
Marking | CE |
Net Weight | 0.163 kg |
Clock Frequency | 333 MHz |
Control Parameter |
|
Communication Service |
|
Concept | Transparent Ready class B |
Processor Name | Spear 320s |
Supply Voltage Limits | 4.75-5.25 V |
Number Of Devices | 32 Modbus |
Software Designation | Unity Pro |
Addressing |
|
Fail State | safe I/O mode |
Method Of Access |
|
Local Signalling |
|
Product Mounting | 35 mm symmetrical DIN rail |
Register Words | 26048 |
Module Format | standard |
Web Services |
|
Width | 144 mm |
Depth | 53.47 mm |
Word Length | 32 bit |
Memory Description |
|
Exact Time For 1 Kinstruction | 83 ns |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1309045EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1309045EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ambient Air Temperature For Operation | 0-60 °C |
Resistance To Electromagnetic Fields | 15 V/m 80...2700 MHz EN/IEC 61000-4-3 |
Standards |
|
Shock Resistance | 15 gn 11 ms sinusoidal vibrations |
Material | lexan |
Ip Degree Of Protection | IP20 |
Relative Humidity | 5-96 % |
Ambient Air Temperature For Storage | -40-85 °C |
Resistance To Electrostatic Discharge |
|
Operating Altitude | <= 6561.68 ft (2000 m) |
Dielectric Strength |
|
