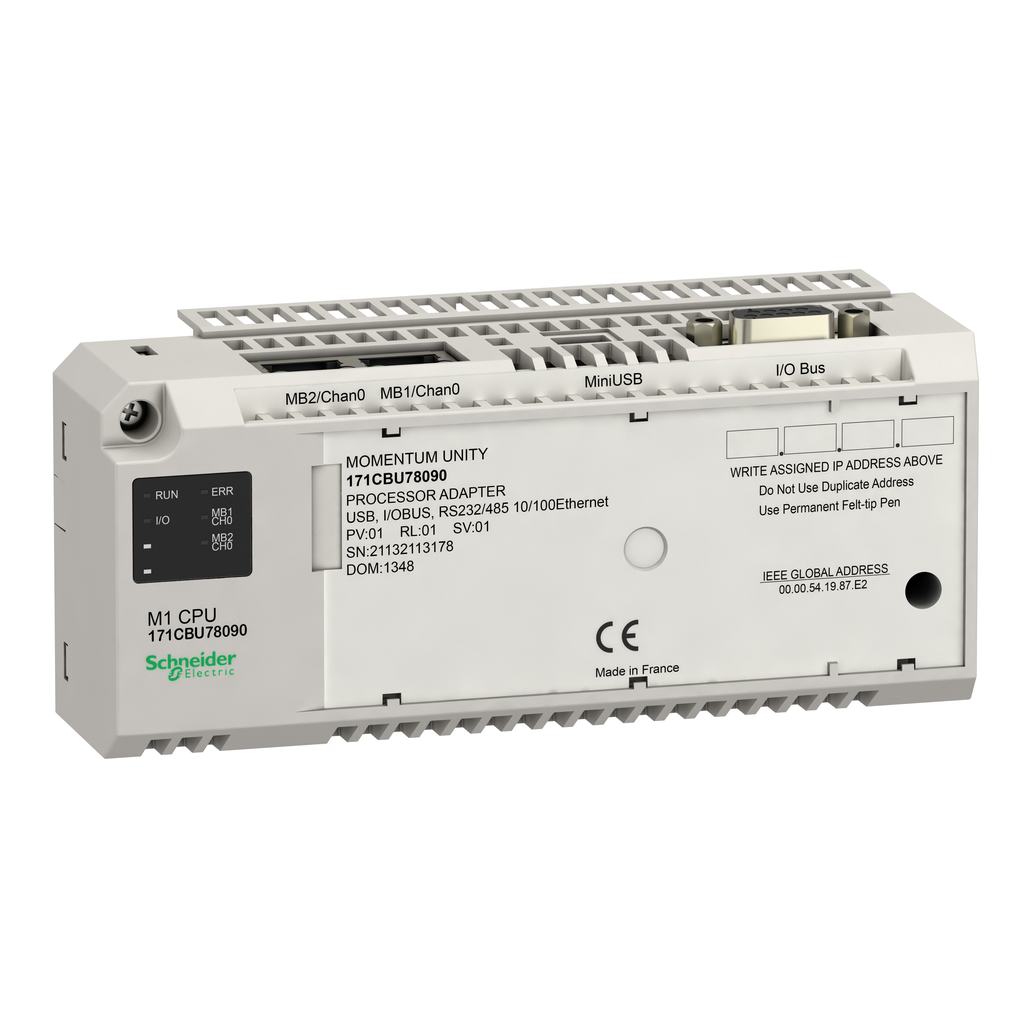

Unity M1 processor - RS232/485 - USB - I/O bus
This processor is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This Unity M1 processor is equipped with USB integrated connection port. The Spear 320s processor offers 125 words Modbus messaging and 200 I/O message per second. The processor is accessible through master/slave method. This processor provides web services like CPU status, home pages and properties. It is an IP20 rated product. Its dimensions are 144mm (width) x 53.47mm (depth) x 60.6mm (height). It weighs 0.159kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM, C-Tick. It meets UL 508, CSA C22.2 No 142 and EN/IEC 61131-2 standards. It supports 35mm symmetrical DIN rail mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Integrated Connection Type | USB port |
|---|---|
| Range Of Product | Modicon Momentum automation platform |
| Product Or Component Type | processor |
| I/O Limit Processor Capacity | 2048 inputs/2048 outputs |
| Height | 60.6 mm |
| Current Consumption | 500 mA 5 V DC |
| Topology | multidrop Modbus |
| Communication Port Protocol | Modbus RS485/RS232 - 1 RJ45 19200 bps - 2-wire |
| Marking | CE |
| Net Weight | 0.159 kg |
| Clock Frequency | 333 MHz |
| Control Parameter | CRC-16 for Modbus |
| Communication Service | Modbus messaging 100 words, 200 I/O message per second |
| Concept | Transparent Ready class B |
| Processor Name | Spear 320s |
| Supply Voltage Limits | 4.75-5.25 V |
| Number Of Devices | 32 Modbus |
| Software Designation | Unity Pro |
| Addressing | 1...247 Modbus |
| Fail State | safe I/O mode |
| Method Of Access | master/slave |
| Local Signalling |
|
| Product Mounting | 35 mm symmetrical DIN rail |
| Register Words | 26048 |
| Module Format | standard |
| Web Services |
|
| Width | 144 mm |
| Depth | 53.47 mm |
| Word Length | 32 bit |
| Memory Description |
|
| Exact Time For 1 Kinstruction | 83 ns |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1309045EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1309045EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | 0-60 °C |
| Resistance To Electromagnetic Fields | 15 V/m 80...2700 MHz EN/IEC 61000-4-3 |
| Standards |
|
| Shock Resistance | 15 gn 11 ms sinusoidal vibrations |
| Material | lexan |
| Ip Degree Of Protection | IP20 |
| Relative Humidity | 5-96 % |
| Ambient Air Temperature For Storage | -40-85 °C |
| Resistance To Electrostatic Discharge |
|
| Operating Altitude | <= 6561.68 ft (2000 m) |
| Dielectric Strength |
|
