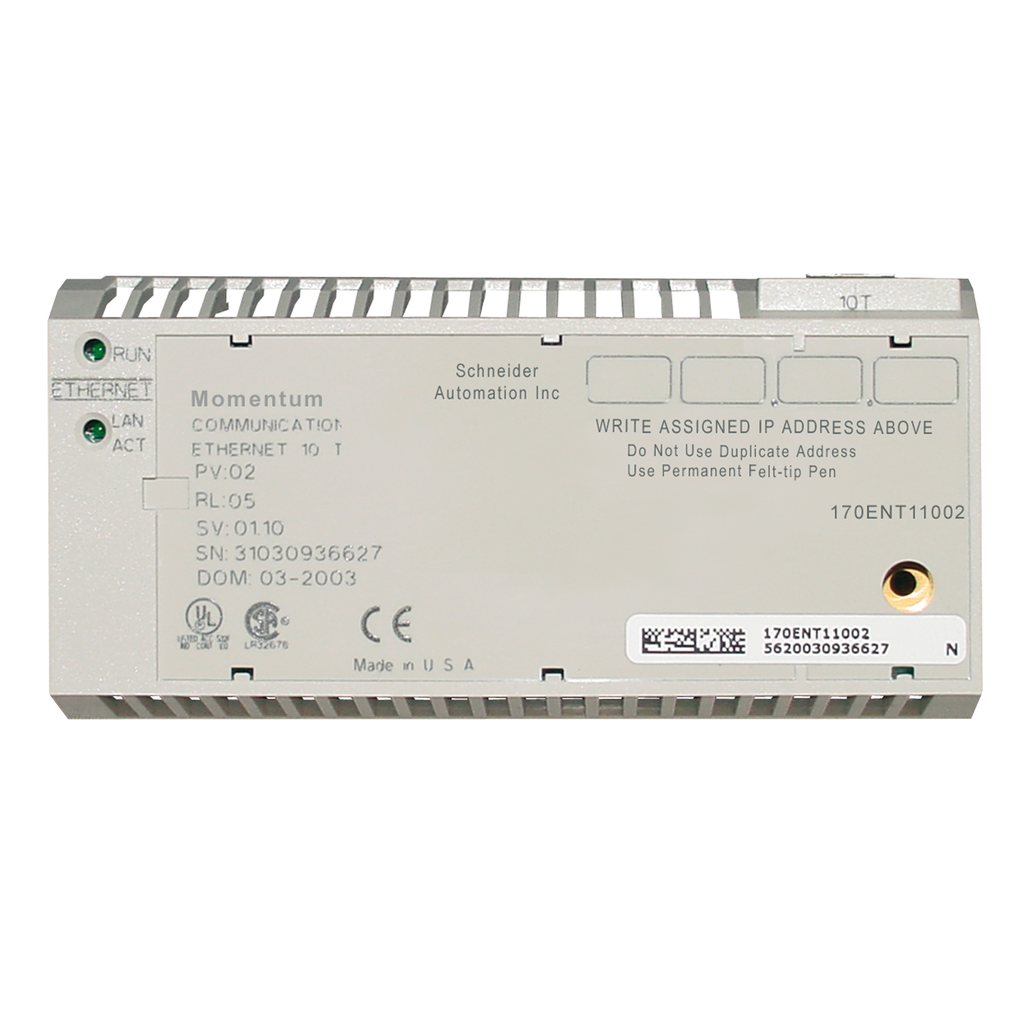

170ENT11002
Modicon Momentum - Ethernet communication adaptor - 10 Mbit/s
Specifications
| Range Of Product | Modicon Momentum automation platform |
|---|---|
| Product Or Component Type | Ethernet TCP/IP communication adaptor |
| Transmission Support Medium | shielded twisted pairs cable |
| Communication Port Protocol | Ethernet TCP/IP |
| Method Of Access |
|
| Transmission Rate | 10 Mbit/s |
| Warranty | 18 months |
| Maximum Cable Distance Between Devices | 1000 m without repeater |
| Addressing |
|
| Electrical Connection | 1 connector RJ45 for 10BASE-TX |
| Number Of Devices Per Segment | 0-32 |
| Module Configuration | BOOTP server to assign IP parameters |
| Supply | from I/O base |
| Marking | CE |
| Fail State | fail safe |
| Net Weight | 0.07 kg |
| Control Parameter | CRC-32 |
| Topology | multidrop, star network |
| Local Signalling |
|
| Port Ethernet | 10BASE-T |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | 0-60 °C |
| Resistance To Electromagnetic Fields | 10 V/m 80...1000 MHz IEC 801-3 |
| Standards |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 95-95 % without condensation |
| Resistance To Electrostatic Discharge |
|
| Protective Treatment | TC |
| Ip Degree Of Protection | IP20 |
| Operating Altitude | <= 16404.2 ft (5000 m) |
