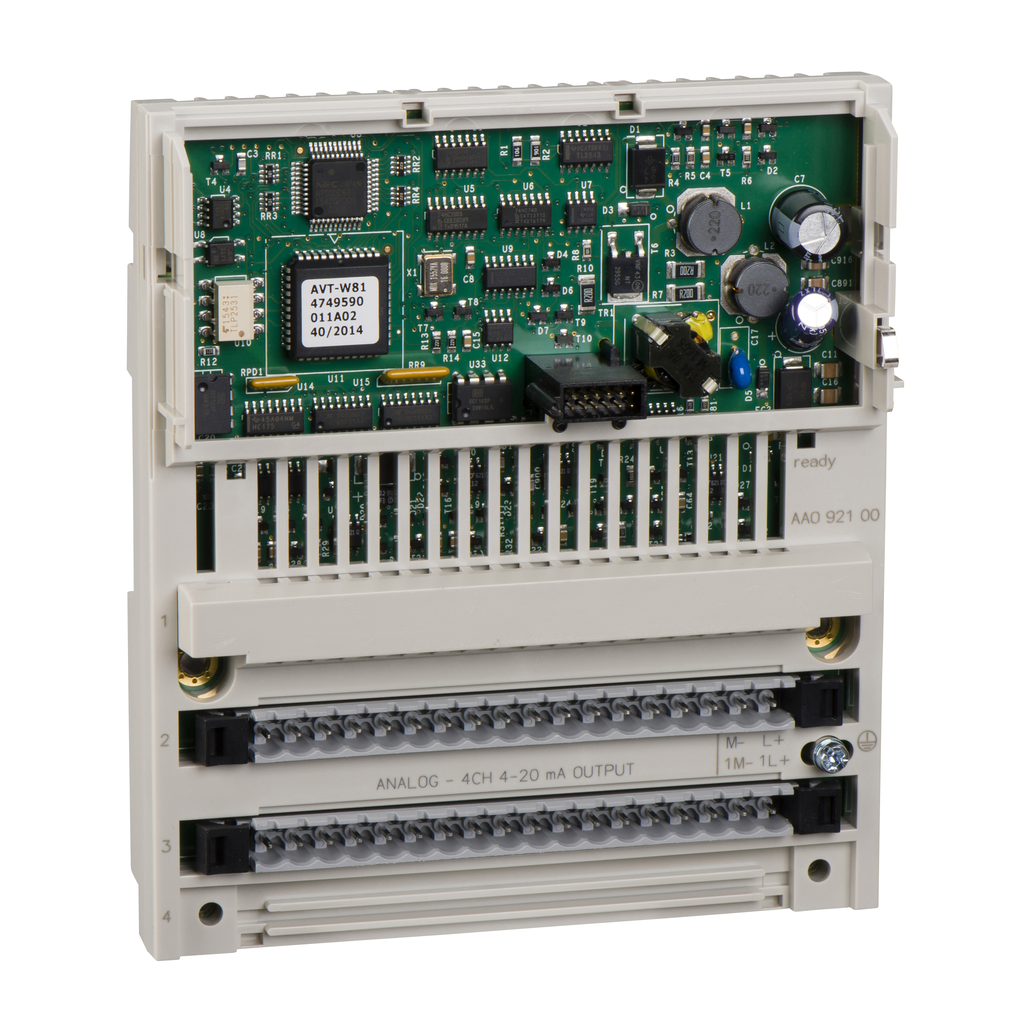

distributed analog output Modicon Momentum - 4 Output - 4..20 mA
This output base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This analog output base offers 4 outputs with a full 16bit signed resolution. It offers analog output ranges from ±10V, 4mA to 20mA. There is an isolation between channels and ground at 500V AC. It features 4 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon Momentum automation platform |
|---|---|
| Product Or Component Type | analogue output base |
| Warranty | 18 months |
| Height | 125 mm |
| Temperature Drift |
|
| Isolation Between Channels And Ground | 500 V AC for 1 minute |
| Current Consumption |
|
| Data Format | full 16 bits signed |
| Marking | CE |
| Fail State |
|
| External Power Requirement |
|
| Net Weight | 0.215 kg |
| Analogue Output Range |
|
| Absolute Accuracy Error |
|
| Full Scale |
|
| Maximum Power Dissipation In W | 8.5 W |
| Analogue Output Number | 4 |
| Output Short-Circuit Protection | with in voltage circuit |
| Permissible Common Mode Voltage |
|
| Local Signalling | for channel status 4 LEDs |
| Module Format | standard |
| Update Time | 2 ms |
| Width | 141.5 mm |
| Depth | 47.5 mm |
| Protection Type | internal 2 A slow-blow |
| Reverse Polarity Protection | internal |
| Maximum Load Capacitance | 1 µF |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403005EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1403005EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | 0-60 °C |
| Resistance To Electromagnetic Fields | 10 V/m 80...1000 MHz IEC 801-3 |
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 95-95 % without condensation |
| Resistance To Electrostatic Discharge |
|
| Protective Treatment | TC |
| Operating Altitude | <= 16404.2 ft (5000 m) |
