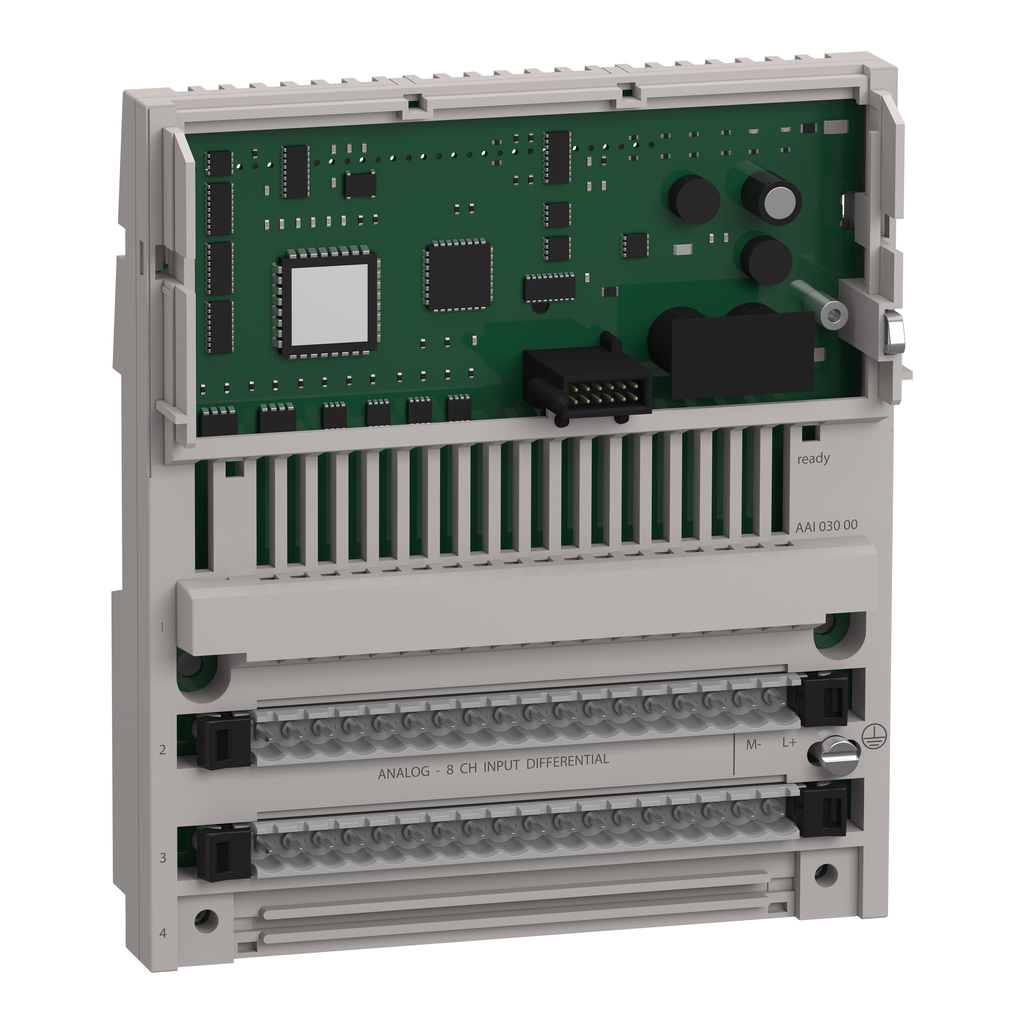

distributed analog input Modicon Momentum - 8 Input
This input base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This analog input base offers 8 inputs with a full 16bit signed resolution. It offers differential analog input ranges from ±20mA, 4mA to 20mA, ±10V, ±5V and 1V to 5V. There is an isolation between channels and bus, channels and ground at 500V AC. It is furnished with 2 removable terminal blocks for electrical connection. It features 1 LED for ready and 8 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It meets EN 50081-2 and IEC 1131 standards. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon Momentum automation platform |
|---|---|
| Analogue Input Range |
|
| Analogue Input Type | differential |
| Product Or Component Type | analogue input base |
| Analogue Input Number | 8 |
| Warranty | 18 months |
| Electrical Connection | 2 connectors for removable terminal blocks |
| Height | 125 mm |
| Isolation Between Channels And Ground | 500 V AC for 1 minute |
| Data Format | full 16 bits signed |
| Marking | CE |
| External Power Requirement |
|
| Net Weight | 0.215 kg |
| Isolation Between Channels | +/- 200 V DC for 1 minute |
| Permissible Common Mode Voltage |
|
| Absolute Accuracy Error |
|
| Local Signalling |
|
| Common Mode Rejection | > 80 dB between channels to ground |
| Conversion Time | 12 ms 8 |
| Width | 141.5 mm |
| Depth | 47.5 mm |
| Isolation Between Channels And Bus | 500 V AC for 1 minute |
| Reverse Polarity Protection | internal |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403005EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1403005EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | 0-60 °C |
| Resistance To Electromagnetic Fields | 10 V/m 80...1000 MHz IEC 801-3 |
| Standards |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 95-95 % without condensation |
| Resistance To Electrostatic Discharge |
|
| Protective Treatment | TC |
| Operating Altitude | <= 16404.2 ft (5000 m) |
