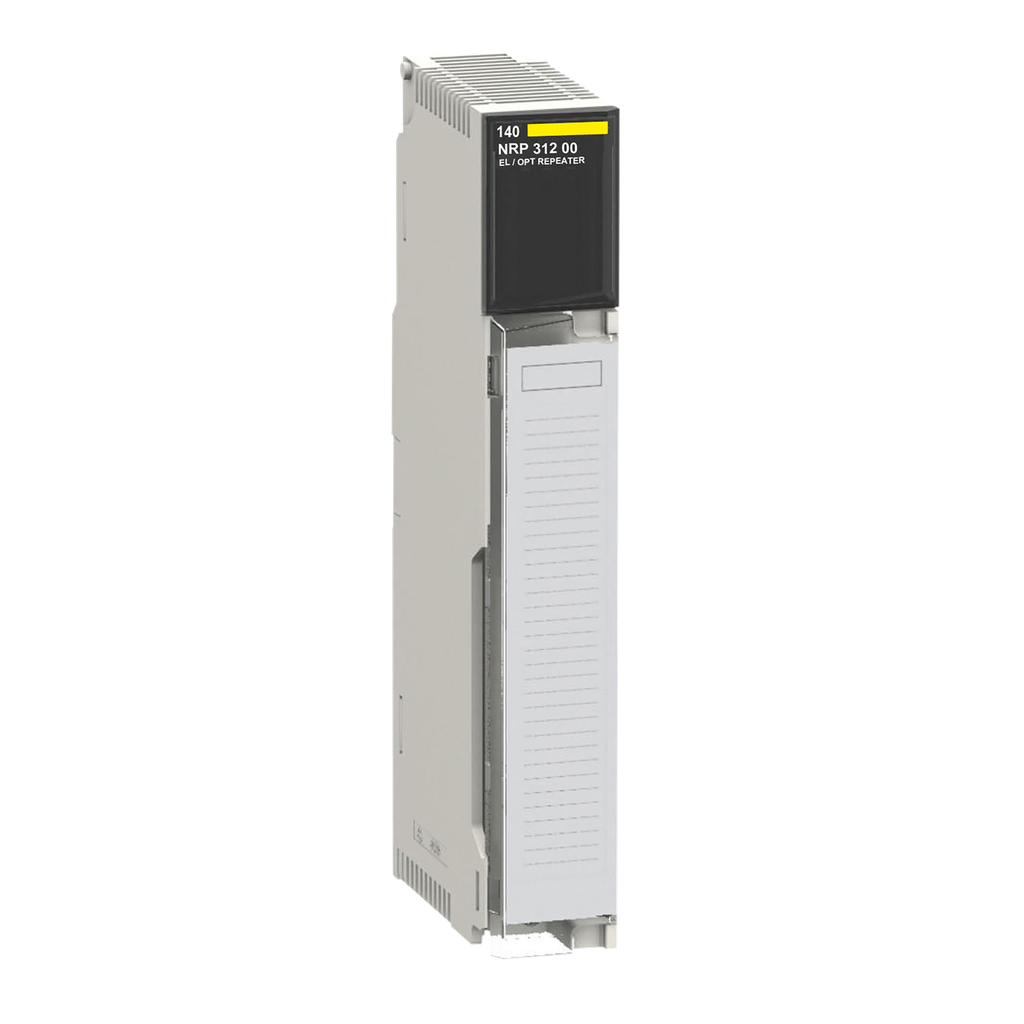

140NRP31200
Ethernet fibre converter MM/LC 2CH - 100 MB
Specifications
| Range Of Product | Modicon Quantum automation platform |
|---|---|
| Product Or Component Type | fibre converter |
| Optic Fiber Type | multi mode |
| Height | 250 mm |
| Optic Distance Between 2 Transceivers |
|
| Rise/Fall Time | 3 ns |
| Marking | CE |
| Local Signalling |
|
| Material | PC (polycarbonate) |
| Net Weight | 0.554 kg |
| Attenuation |
|
| Wavelength | 1310 nm |
| Power Dissipation In W | 5 W |
| Detected Silence | -45 dBm |
| Bus Current Requirement | 1000 mA |
| Width | 40.34 mm |
| Depth | 103.85 mm |
| Inrush Current | 1 A 5 V DC |
| Number Of Port |
|
| Receiver Sensitivity | 30 dBm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP071201EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI0712001EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | 0-60 °C |
| Standards |
|
| Relative Humidity | 0-95 % |
| Ambient Air Temperature For Storage | -40-85 °C |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
