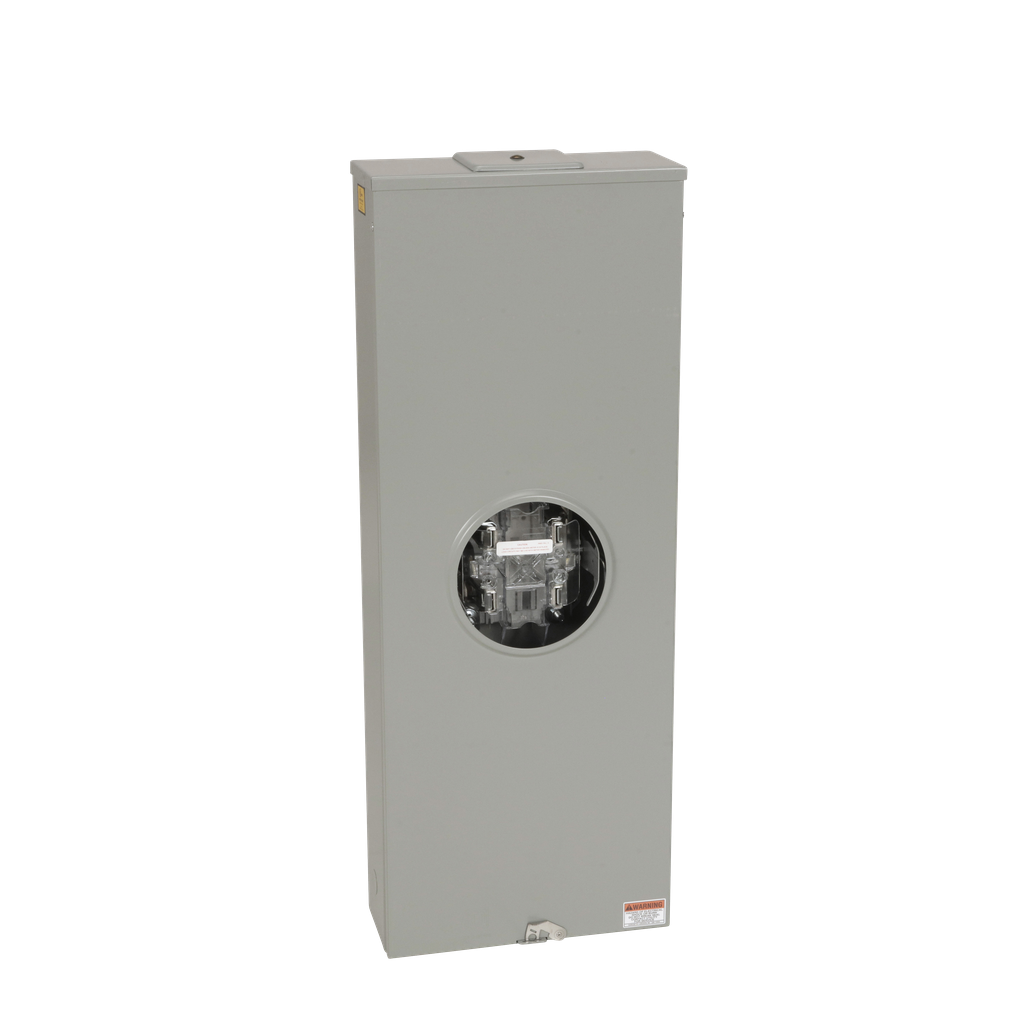

Meter socket, ringless, 1 phase, 3 wire, 4 jaws, Series A-L, lever bypass, jaw release
Square D individual meter socket is a single phase, ringless meter socket device for single family residential construction. This socket underground feed has provisions to feed a downstream main lug load center, a main breaker load center, or an individually enclsoed service disconnect. This socket is an A-L ACPL closing plate type with 4 jaws and a lever bypass, and a current rating of 320A. This unit has a rated operational voltage of 600 VAC and a short circuit current rating of 10,000 RMS symmetrical amperes. It also has a NEMA type 3R enclosure that is supplied with a bonded neutral, and hub opening in top endwall. This hub opening will require the use of a bolt on hub or closing plate. Unit is UL listed. This meter socket has a 320 A rating. This unit can be for a feed from an overhead or underground service. This unit has a NEMA 3R surface mounting enclosure. The studs will accept one 600 kcmil or two 350 kcmil copper or aluminum wires. This individual meter socket is UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Hub Type | A-L ACPL closing plate |
|---|---|
| Meter Socket Type | ringless |
| Product Or Component Type | Meter Socket |
| Warranty | 18 months |
| Service Feed Location |
|
| Meter Socket Rated Current | 320 A |
| Device Mounting | surface |
| [Ue] Rated Operational Voltage | 600 V AC |
| Bypass Type | lever bypass |
| Enclosure Material | steel |
| Awg Gauge |
|
| Wiring Configuration | 3-wire |
| Electrical Connection | studs 0.375" hex |
| Number Of Jaws | 4 with jaw release |
| Phase | 1 phase |
| Eu Rohs Directive | Under investigation |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Product Certifications | UL Listed |
| Nema Degree Of Protection | NEMA 3R |
