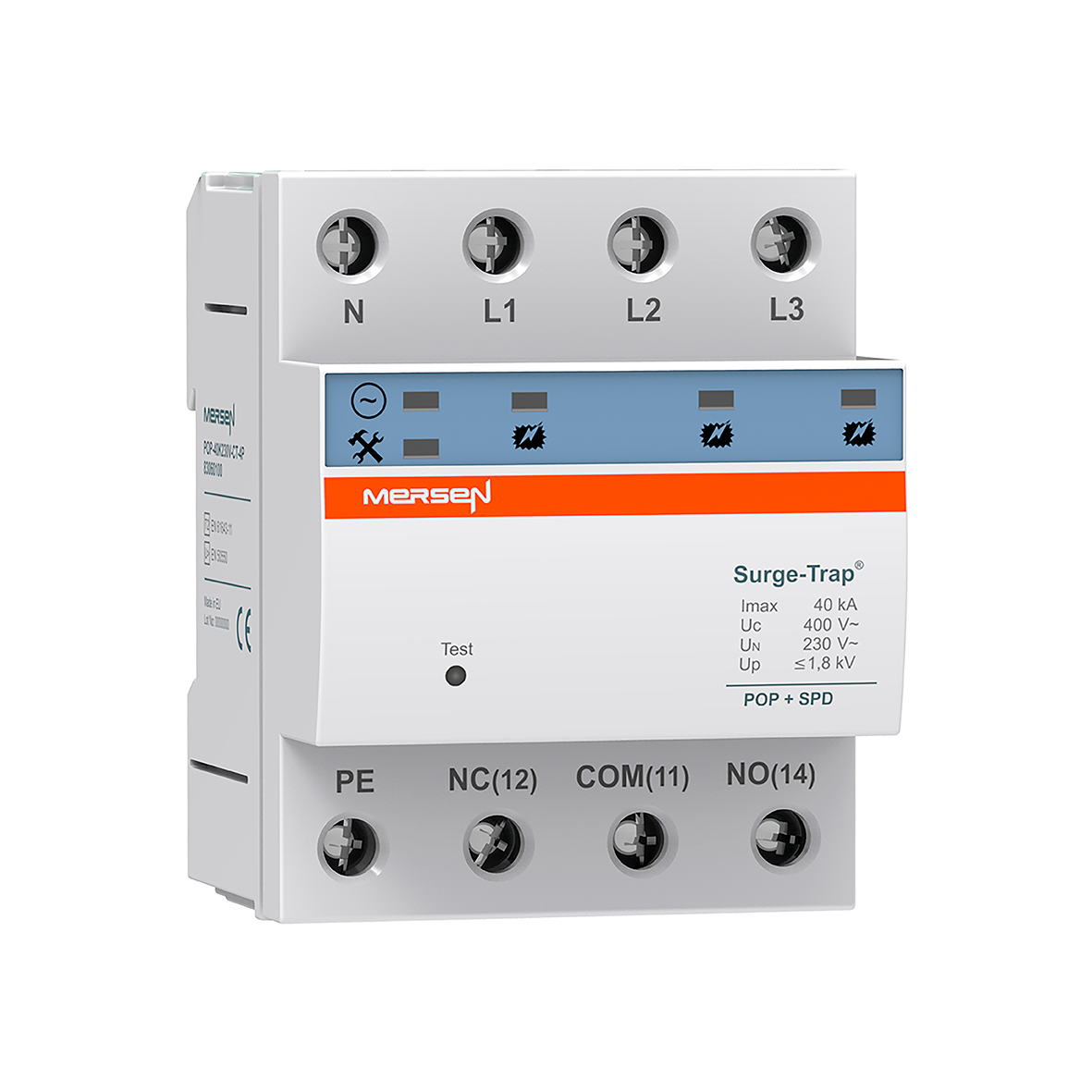

83060100
POP+SPD, T2, 40 kA Imax, 400V Uc
POP CT is the series of combined power frequency overvoltage protection (POP) and surge protection device for discharging surge current in the first step of protection according to EN/IEC 61643-11.
Intended for actuation on the contactor of an installation (not included). Suitable for the first stage of protection in commercial or other applications not exposed to direct strikes and with no external lightning protection system. These devices are suitable for installation in lighting panels.
Brand: Surge-Trap®
Add to QuoteSpecifications
| Item Number | 83060100 |
|---|---|
| EAN UPC Code | 8435297859345 |
| GTIN Sell Pack | 38435297859346 |
| Applications |
|
| Approvals Standards |
|
| Brand Name | Mersen |
| Country Of Origin | ES |
| Degree Of Protection Ip | IP20 |
| Features Benefits |
|
| IEC SPD Type | Type 2 / Class II |
| Max Operating Temp | 40 °C |
| Min Operating Temp | -5 °C |
| Product Line | Surge-Trap® POP + SPD Type 2 – For Contactor |
| Product Brand | Surge-Trap® |
| Product Family | Surge Protection |
| Product Group | Power Frequency Overvoltage Protection Devices |
| Wire Type | Rigid: 6…35mm² / Stranded: 6…25mm² |
| Housing Material | PC+FG; V-0 |
| Indication System | 1 |
| Indication System Type | Visual Indicator |
| Max Back-up Fuse | 80 A gG |
| Number Of Poles | 4-Pole |
| Product Height | 3.54 in |
| Product Length | 2.76 in |
| Product Weight | 0.772 lb |
| Product Width | 2.83 in |
| Sell Pack Description | Box |
| Sell Pack Height | 3.15 in |
| Sell Pack Length | 4.13 in |
| Sell Pack Width | 3.15 in |
| Sell Pack Quantity | 1 EACH |
| Sell Pack Weight | 0.772 lb |
| AC Or DC | AC |
| Catalogue No | POP-40K230V-CT-4P |
| Item Description | POP-40K230V-CT-4P |
| Max Discharge Current Imax 8 20 | 40kA |
| Nominal Discharge Current | 15kA |
| Nominal Operating Volt Rating Un | 230 / 400 V |
| Order Multiple | 1 |
| Short Description | POP+SPD, T2, 40 kA Imax, 400V Uc |
| Suitable For Outdoor Use | 0 |
| Torque Rating | 35.4 lb-in |
| Suitable For Outdoor Use | 0 |
