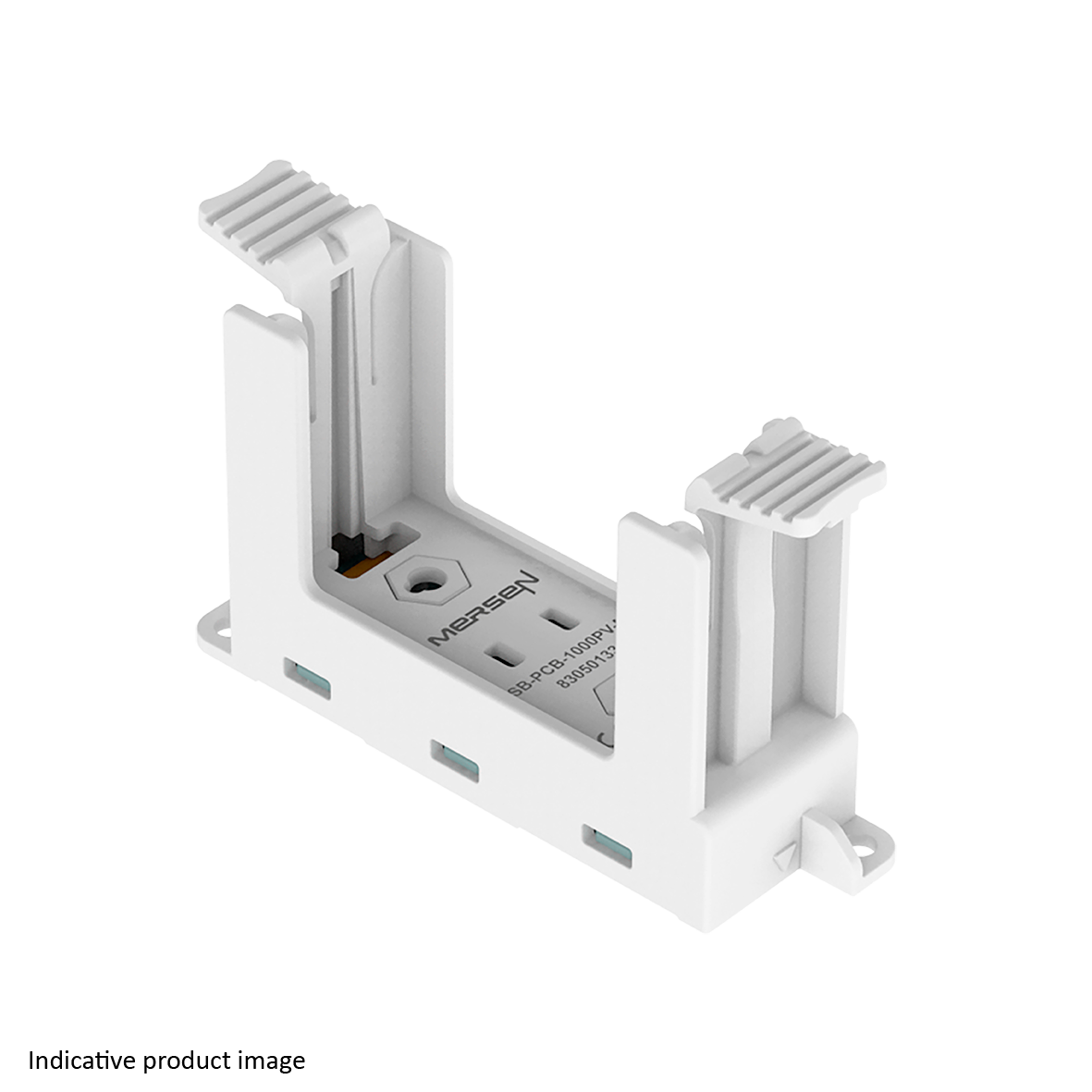

SB PCB is the series of socket bases that allow for integration of Mersen’s pluggable IEC surge protection cartridges directly on printed circuit boards. Those surge cartridges will be easily replaceable upon reaching their end of life. SB PCB is an optimal solution for the industry of power electronics: inverters, converters, control panels for railway, PV combiner boxes, machines, OEM equipment, etc. Key benefits are cost efficiency, space efficiency, no wiring and optimal voltage protection of sensitive electronics. Integration of surge protection on PCBs is often planned for at an early stage of development of the system. The surge sockets will be firmly fixed to the PCB during the wave soldering process. They’ll host the entire range of IEC surge protection cartridges AC & DC, T2 & T1.
Brand: Surge-Trap®
Add to QuoteItem Number | 83050135 |
---|---|
EAN UPC Code | 8435297867524 |
GTIN Sell Pack | 38435297867525 |
Applications |
|
Brand Name | Mersen |
Country Of Origin | ES |
Degree Of Protection Ip | IP20 |
Features Benefits |
|
IEC SPD Type | Type 1+2 & Type 2 to IEC |
Max Operating Temp | 85 °C |
Min Operating Temp | -40 °C |
Product Line | Surge-Trap® PCB Socket |
Product Brand | Surge-Trap® |
Product Family | Surge Protection |
Product Group | Surge Protection Components for OEM Designers |
Housing Material | PA66 CT1; V-0 |
Indication System | 1 |
Indication System Type | LED and Remote |
Product Height | 2.4 in |
Product Length | 2.79 in |
Product Weight | 4.381 lb |
Product Width | 0.8 in |
Sell Pack Description | Box |
Sell Pack Height | 8.07 in |
Sell Pack Length | 9.06 in |
Sell Pack Width | 10.47 in |
Sell Pack Quantity | 96 EACH |
Sell Pack Weight | 4.381 lb |
AC Or DC | AC |
Catalogue No | SB-PCB-1500PV-M |
Item Description | SPD Base for PCB,1P,1500VDC,IR |
Order Multiple | 96 |
Replacement Plug L-n | SP2-40K1500V-PV |
Short Description | SPD Base for PCB,1 Pole, 1500V DC, IR |
Suitable For Outdoor Use | 0 |
Suitable For Outdoor Use | 0 |
