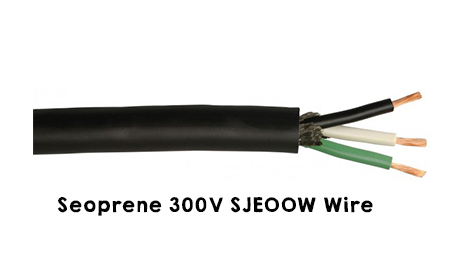

Seoprene 300V SJEOOW Wire
Seoprene 300V SJEOOW Wire

Seoprene 300V SJEOOW Wire Construction Parameters:

CONDUCTOR: 18 AWG – 10 AWG Class K stranded bare copper per ASTM B-174

INSULATION: TPE

JACKET: TPE

COLOR: Black (Other colors available upon request)

COLOR: *White

PRINT LEGEND: CCI SEOPRENE 105C XX AWG (X.XX mm2 ) X/C SJEOOW E54864 (UL) 300V -50C TO 105C — CSA LL39753 SJTOOW (TPE) 300V -50C TO 105C FT2 WATER RESISTANT

INDENT P-241-3-MSHA

*INDENT LEGEND: CCI SEOPRENE 105 18 AWG (0.82mm2) 4/C SJEOOW E54864 (PLANT ID CODE) (UL) 300V -50C TO 105C — CSA LL39753 SJTOOW(TPE) 300V -50C TO 105C FT2 WATER RESISTANT P-241-3-MSHA

Ink Jet Legend: XX/XX/XX (MONTH/DAY/YEAR) HH:MM (HOUR/MINUTE)

PHYSICAL PROPERTIES:

TEMPERATURE RANGE:-50°C to 105°C

WATER RESISTANT: Yes

ELECTRICAL PROPERTIES:

VOLTAGE RATING: 300V rms, Max

Industry Approvals:

  • UL Standard 62
  • CSA Standard C22.2 No. 49
  • NEC Article 501.140 Class I Div. 2
  • NEC Article 400
  • Federal Spec JC580
  • Passes CSA FT2 Flame Test
  • MSHA
  • EPA 40 CFR, Part 26, Subpart C, heavy metals per Table 1, TCLP method

Download the Seoprene 300V SJEOOW Wire spec sheet below or call 714.835.6211 for more information.
