Extension to the TeSys D family offering large-range
AC/DC coils with very low consumption

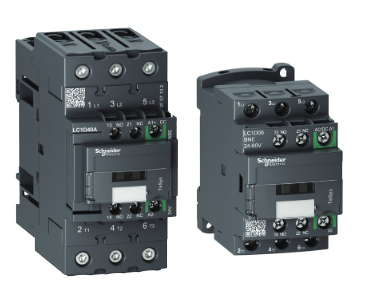

TeSys D Green contactors apply the latest technology to expand
the coil voltage range while significantly reducing coil consumption.
Available from 9 to 65 amps with only 4 coil voltage ranges from
24 to 500 V AC or DC.
Low control amps > Lower permanent consumption
Reduced coil power (just 0.5 W / 24 V DC for the BBE coil) contributes to
increased machine energy efficiency.
Low control current > Direct PLC control
TeSys D Green contactors (with BBE coil code) can be driven by a common
24 V DC / 500 mA static output, eliminating the need for an interposing relay.
Large coil voltage range > Reliable operation
With the expansive voltage range, contactor operation is less susceptible
to under voltage, over voltage, and voltage sag.
Large coil voltage range > Reduced inventory / spares
Fewer part numbers are needed to cover the commonly used control
voltages, reducing the number of part numbers to carry for new or
replacement needs.
Coil monitoring / control > Reduced contact bounce
TeSys D Green contactors prevent microbreaks due to machine shocks
and vibrations, increasing the reliability and performance of the machine.
Brand: Square D
